Product Description

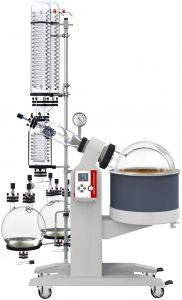

The new Ai SolventVap 20L series rotary evaporator comes with all PTFE valves for solvent-resistant operations. Also available are vertical glassware and digital temperature/rotation control.
The optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently to allow the SolventVap evaporators to consistently deliver reliable and reproducible process results that are usually reserved for more costly systems.
Additional features of the SolventVap are safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
This rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 130 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.
The digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.
The standard glassware set includes 5.28 gallon (20 liters) round-bottomed evaporating flask, 2.64 gallon (10 liters) round-bottomed receiving flask, and vertical condenser.
Rotary evaporators with a vertical glass condenser for are great for distillation of solvents with higher boiling points.
Features:
~ Standard with a custom made stainless steel 20L evaporating flask carrier with silicone cushions. This carrier can be placed on top of our 20L SolventVap's water bath for easy loading and unloading. It can also be used as a flask stand.
~ Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
~ Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
~ Downward-condensing vacuum connection design ensures safe vacuum operation.
~ Motorized water bath lifting for precise control.
~ Easy, straight-forward visual operation with digital speed and temperature display.
~ PID temperature controller ensures accurate temperature control is maintained.
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Across SE53 (20L) Rotary Evaporator or copy the following into your browser address window: labequip.com/stock/pictures/n1697.pdf
ACCESSORIES:
Comes complete with
SolventVap 5.3-gallon rotary evaporator and water bath
Vapor filtering bottle
Evaporation Flask Seal & Positioner
Evaporation Flask Cap (pre-installed)
Vertical main and auxiliary condensers
20L round-shaped, big neck evaporating flask, glass
10L receiving flask with detachable drain port
Three-way tee vapor buffering flask, glass
Three-way vapor cap (pre-installed)
three-way vapor washers (pre-installed)
Glass vapor duct with seal (pre-installed)
PTFE vacuum sealing kit (pre-installed)
Receiving flask glass vacuum port with PTFE open/ close valve
Glass material feeding port with PTFE open/close valve, PTFE extension hose
Receiving Flask Drain Port w/PTFE Valve
Stainless steel pole
Mechanical vacuum gauge with 3 hose barb connectors
Rubber-wrapped condenser support and bracket
Rubber-wrapped receiving flask support
Flask quick clamp & centering ring
Centering Rings
GL18 connector with Gaskets
Evaporating flask cap spanner
Allen key & inner hex screws
stainless steel flask carrier/stand
plexiglass bath cover
User's manual
Optional accessories available at additional cost:
Vacuum pump
chiller
