Benchmark Scientific C2000 (Microplates) Benchtop Centrifuge

Product Description
Benchmark's PlateFuge is the first 'mini' sized centrifuge with a swing out rotor for microplates. Centrifuging plates before PCR ensures all reactants are in the bottom of the wells for proper concentrations and improved yields.

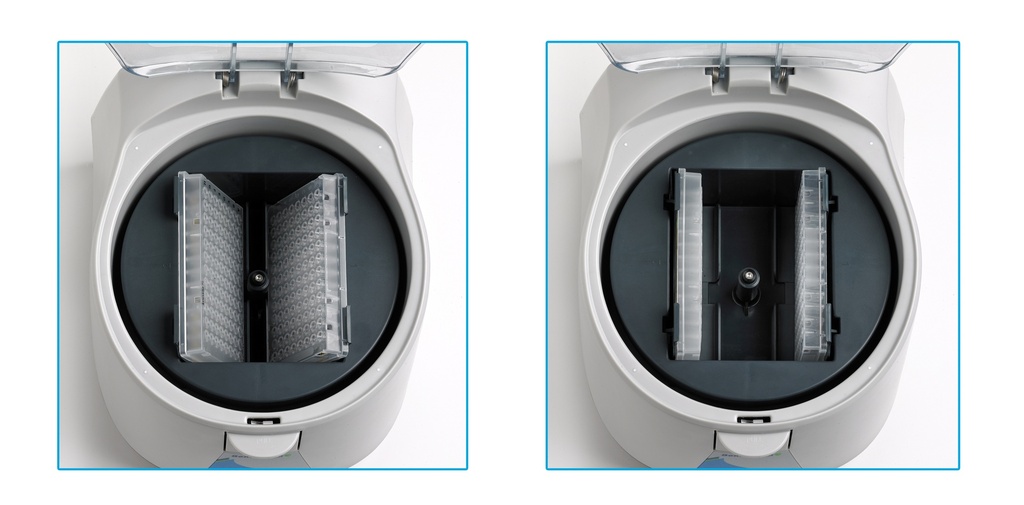

In spite of its remarkably small footprint (9×10 in.), the PlateFuge includes a uniquely designed, swing out rotor (patent pending) capable of securing 2 microplates. The easily accessible rotor chamber includes two plate carriers that rest at a 75° angle. This allows plates to be inserted confidently without sealing tapes or caps. Upon closing the lid of the centrifuge, the rotor accelerates and the centrifugal force 'swings' the plates into a horizontal position. Any droplets on the walls of the plate quickly concentrate into the well bottoms.

With a g-force of 600 xg, most samples can be spun down in less than 20 seconds.
To end a run, simply open the lid and the automatic, electric brake brings the rotor to a quick, smooth stop in just 4 seconds. Plates can then be easily removed from the rotor.

Accepts all popular types of PCR plates (skirted, semi, and non) and most microtiter plates

SPECIFICATIONS:
Speed: 2550 rpm / 600 xg
Capacity:
~ 2 x 2 PCR Plates
~ 2 x microtiter plates (up to 25 mm)
~ 24 x 0.2 ml PCR strips
Deceleration: 4 seconds
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Benchmark C2000 (Microplates) Benchtop Centrifuge or copy the following into your browser address window: labequip.com/stock/pictures/n2081.pdf
Made in USA.

ACCESSORIES:

Comes complete with:
microplate rotor

Optional accessories available at additional cost: - rotor with carriers for deep well plates up to 35mm tall (speed: 1500rpm)
- Tube Adapter, hold 96 x 0.2ml or 8 and 12 position PCR strips, 2/pk

---
