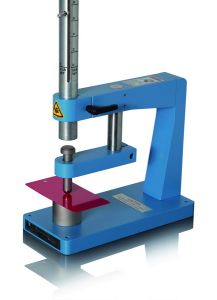

BYK-Gardner English model (1120) Heavy Duty Impact Tester

Product Description
This impact tester has gained wide acceptance in testing the impact resistance of many types of coatings from paints to varnishes to tough plated, plastic or laminated coatings. It is also widely used to establish quality control standards for resistance to impact surface damage and penetration of many construction materials including plastics, resins, fiberglass, sheet metals, and plywood.

.Can be configured in metric or imperial units
.Heavy duty construction for long life
.More than 10 weights to choose from in either gram or pound units
.Large selection of die and indenter sizes
.Easy change-over of weight, dies, and indenters

Note: Sample thickness maximum is 12.7mm (0.5 in)

TWO MODELS ARE AVAILABLE:
English Model (#1120)
Metric Model (#5545)
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK-Gardner English model (1120) Heavy Duty Impact Tester or copy the following into your browser address window: labequip.com/stock/pictures/n2313.pdf
Made in USA.

ACCESSORIES:

COMES COMPLETE WITH:
Basic plate with clamping device
Guide tube with inch-scale (1248)
Falling weight 2 lbs (1240)
Falling weight 4 lbs (1241)
Ball punch 0.625 in (1243)
Die 0.640 in (1264)
Anvil
Manual

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
Ball Punch 0.375 in
Ball Punch 0.250 in
Ball Punch 0.125 in
20° Punch, 0.125"
D-Tip Punch, r1
D-Tip Punch, d1
3-sided Tip Punch
Lift Screw
Falling Weight 2 lbs
Falling Weight 4 lbs
Ball Punch 0.625 in
Guide Tube
Die 0.640 in
Base Assembly

---
