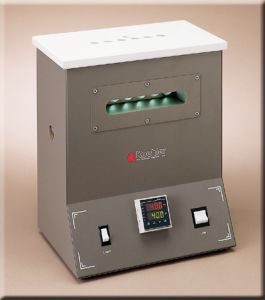

Koehler Instrument K19400 / K19410 High Temperature Dropping Point Tester

Product Description
The ASTM D2265 dropping point test permits higher temperatures than the ASTM D566 method and uses a different heating procedure: the test cell is inserted in an aluminum block oven maintained at a constant temperature that is higher than the expected dropping point of the sample. The sample temperature then rises to the dropping point without operator control.

Features and Benefits
~ Six-sample testing capability
~ Microprocessor programmable high accuracy temperature control

The K19400 High Temperature Dropping Point Apparatus tests dropping points of lubricating greases at temperatures of up to 400°C (752°F). Includes thermostatically controlled aluminum block oven and six complete dropping point assemblies. Six-place oven has large viewing ports with fluorescent backlighting for excellent visibility. Microprocessor PID control provides quick temperature stabilization without overshoot and the bath is protected by an over-temperature control circuit that interrupts power should block temperature exceed a programmed cut-off point. Dual LED displays provide actual and setpoint temperature values in °C/°F format. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. Microprocessor temperature control with digital readout and over-temperature safety cut-off maintains block temperature with ±0.5°C stability. Insulated cabinet has a chemical resistant polyurethane finish.

Maximum Temperature: 400°C (752°F)
Control Stability: ±0.5°C (±1°F)
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K19400 / K19410 High Temperature Dropping Point or copy the following into your browser address window: labequip.com/stock/pictures/n1088.pdf
Made in USA.

ACCESSORIES:

Comes complate with:
Dropping Point Assemblies (6)
- consisting of: test tube, grease cup, thermometer clamp, upper and lower bushings and bushing support ring
Thermometer Depth Gauge
Polished Metal Rod
Cup Support

Optional accessories available at additional cost:
250-000-03F ASTM 3F Thermometer - Range: 20 to 760F
250-000-03C ASTM 3C Thermometer - Range: -5 to +400C
K194E7 Cup Plug Gauge - Per Fig. 1, ASTM D566 and Fig. 1-E-7, ASTM D2265
K194EA Grease Cup
K194EB Test Tube, 13x100mm
K194EC Cup Support
K194E1 Thermometer Clamp
K194E2 Upper Bushing
K194E3 Lower Bushing
K194E4 Bushing Support Ring
K194E5 Thermometer Depth Gauge
K194E6 Polished Metal Rod

---
