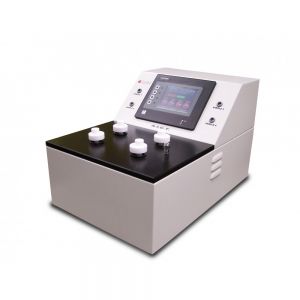

Koehler Instrument K30260 / K30269 Accelerated Iron Corrosion Tester

Product Description
Accelerated Laboratory and Field Procedure for the determination of corrosion of iron, in the presence of water, on samples such as gasoline and gasoline blended with 10% ethanol, E10 (Specification D4814); gasoline blend components (except butane); diesel fuel and biodiesel B5, except Grade No. 4-D (Specification D975); biodiesel B6 to B20 (Specification D7467); diesel-blend component such as light cycle-oil; No.1 fuel oil, No.2 fuel oil (Specification D396); aviation turbine fuel (Specification D1655).

FEATURES:
Preset Temperature and RPM value in direct accordance with ASTM D7548
5 in. Touch Screen Control Display with Soft keys
4-position liquid bath
Integrated Timer
Small Footprint

SPECIFICATIONS:
Conforms to the specifications of: ASTM D7548
Temperature Setting: 37.8°C (100°F)
Bath Tank Volume: 1.3 Gallons
Heating/Cooling: Peltier Regulating System
Stirring Speed: 100 RPM; 900 RPM
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K30260 / K30269 Iron Corrosion Tester or copy the following into your browser address window: labequip.com/stock/pictures/n1835.pdf
Made in USA.

ACCESSORIES:

COMES COMPLETE WITH:
5ml Syringe with 63.5mm (2.5 in) needle
Temperature Probe (4)
Test Jar, 90 ml capacity, flat-bottom (4)
Test Jar Cap (4)
Corrosion Test Specimen Assembly (4)
Port Cover (4)
Ethernet Crossover Cable (1)
O-Ring (4)
Magnetic Stirrer Bar according to ASTM (5)
2x Lighted Magnifying Lens (1)

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
250-000-28F ASTM 28F Thermometer, Range: 97.5 to 102.5°F
250-000-28C ASTM 28C Thermometer, Range: 36.6 to 39.4°C
K30130 Polishing Chuck
K30150 Drive Motor, 115V
K30180 Drive Motor, 230V
380-100-002 Silicone Carbide Abrasive Cloth Roll, C-100 grit Open Mesh, 38mm width x 22.5m length. For Preliminary grinding and final polishing of test specimens.

---
