Product Description
The Koehler K60094 Portable Oil Heated Test Centrifuge is designed expressly for petroleum testing applications according to ASTM D96 test method. Centrifuge accommodates two 6 in. conical ASTM centrifuge tubes. Molded PTFE supports provide for maximum protection and easy positioning of tubes. Quiet running unit features elastic suspension of the drive motor for self-balancing operation. Centrifugation provides a convenient means of determining sediment and water content in crude oil, fuel oils, and middle distillate fuels. Also used in determining the precipitation number, demulsibility characteristics, trace sediments, and insolubles in used lubricating oils.
Speed range: 300 to 1800rpm
RCF Range: 20 - 700
Temperature Control: Ambient to 250°F (121.1°C)
Features and Benefits:
~ Portable design for remote operation with 12V DC power requirements
~ Accommodates two 6 in. conical ASTM centrifuge tubes
~ Control of acceleration ramp and centrifugation speed
~ Special heating unit for sample pre-heating prior to testing
~ Bowl heating system to maintain sample temperature during testing
~ Doubly-insulated construction to reduce heat loss
~ Sliding stainless steel lid
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K60094 portable 2-place Oil Test Centrifuge or copy the following into your browser address window: labequip.com/stock/pictures/n681.pdf
Made in USA.
ACCESSORIES:
Comes complete with:

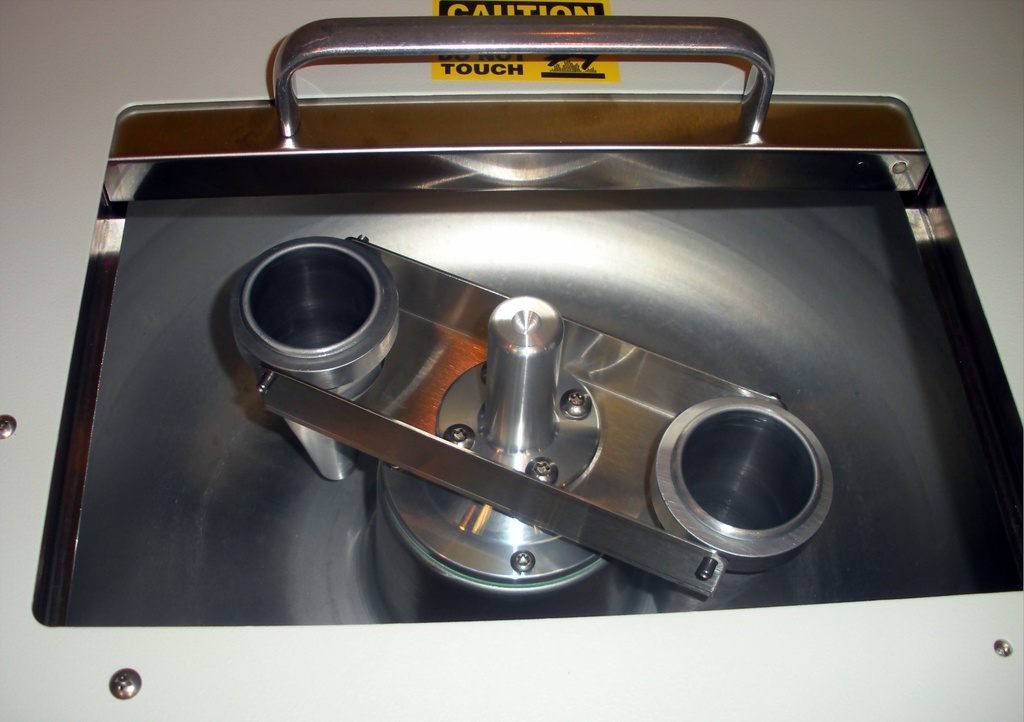

2 place rotor
Optional accessories available at additional cost:
~ K61102 Centrifuge Tubes, Cone Shaped, 100mL, 6 in., marked in 200 parts every 4 parts above 20mL
~ K61105 Centrifuge Tubes, Cone Shaped, 100mL, 6 in., marked in mL
~ K61107 Centrifuge Tubes, Cone Shaped, 100mL, 6 in., marked in mL every 2mL above 10mL
~ K61108 Centrifuge Tubes, Cone Shaped, 100mL, 6 in., marked in 200 parts
~ K61141 Centrifuge Tube, Finger Tube, 12.5mL
~ K61111 Cork Stoppers for Centrifuge Tubes
